Zaporozhye
Machine-Building plant them. V.I. Omelchenko
|

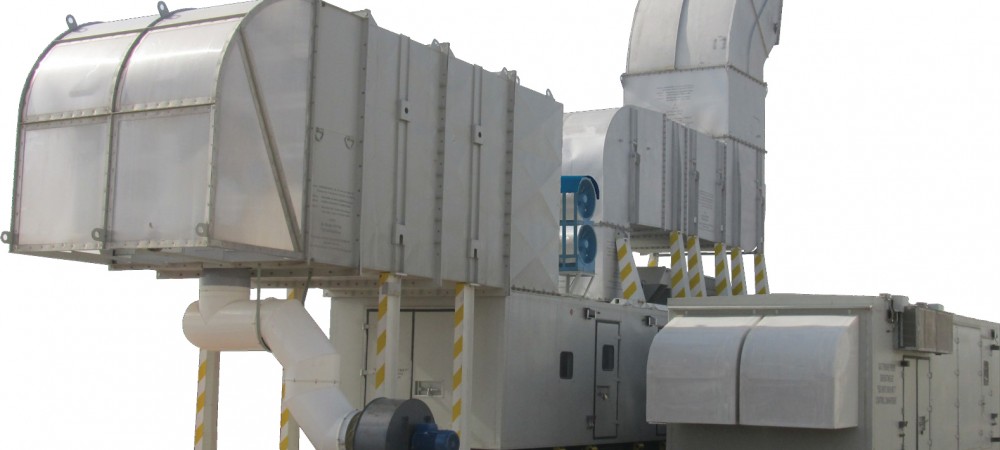

Manufacture of power generating sets
- Manufacture of power generating sets with the power of 6 and 10 MW based on the gas-turbine engines. Kerosene, natural gas and diesel fuel are used as fuel.
- Manufacture of gas-pumping units for gas transmittal pipelines (also based on the gas-turbine engines).
Specification
| Power, kW: | |
| - nominal | 6000 |
| - maximum | 7200 |
| Type of current | alternating, 3-phase |
| Voltage, V | 6300, 10500, 13800 |
| Current frequency, Hz | 50/60 |
| Drive | GTE-8/М-E (gaseous), GTE-8/MS-ED (liquid) |
| Fuel | gaseous (natural or casing-head gas), liquid (kerosene, diesel fuel) |
| *Exhaust gas emission, kg/s | 32,2 |
| *Exhaust gas temperature, ?С | 430 |
| *Fuel consumption, kg/h | |
| - fuel gas with the lowest calorific value of 50000 kJ/kg | 1500 |
| - liquid fuel with the lowest calorific value of 42500 kJ/kg and density of S=0.81 kg/m3 | 2036 |
| * Efficiency under nominal load, %, minimum | 32 |
| Maximum overall dimensions (as assembled), m: | |
| - length | 20 |
| - width | 9,8 |
| - height | 12,3 |
| Mass, kg | 82000 |
* at nominal power under ISO conditions
|
